97500 GTH-1048, GTH-1056 3 April 2017 How to Read Your Serial Number.

• Genie Gth 1056 Spec
• Genie Gth 1056 Manual

The Genie® GTH™-1056 telehandler offers excellent lift capacity and a maximum forward reach 42 ft to move heavy loads over obstacles. Powerful four-wheel drive and turbocharged diesel engine to handle even the toughest worksite conditions.

Overview

• Compact outside turning radius and excellent ground clearance
• Powershift transmission with three speeds forward and reverse
• Multi-function proportional joystick control for fast, precise positioning
• Frame-leveling chassis — pick up or place loads on up to 10˚ side slopes

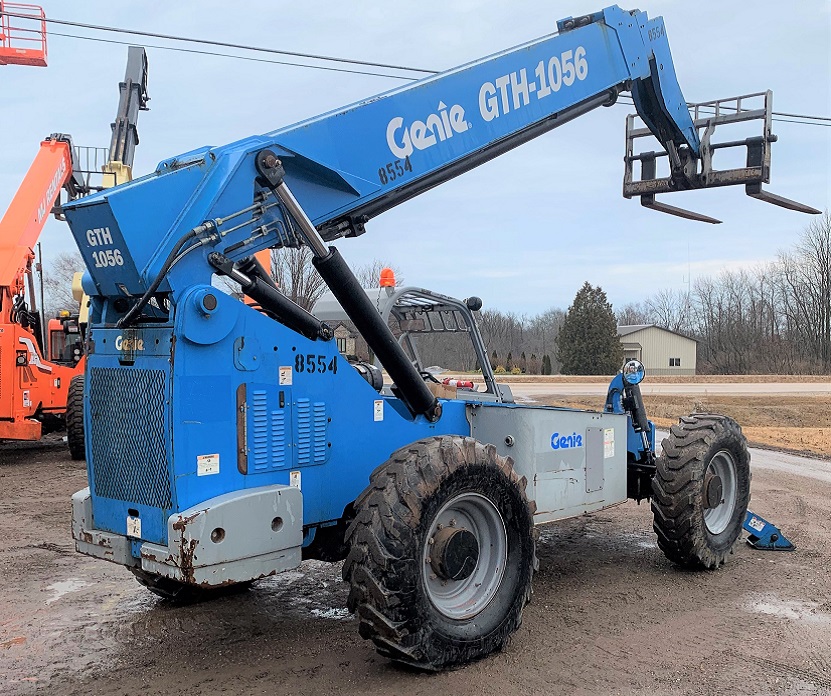

This 2013 Genie GTH-1056 Forklift features a 10,000 LB Lifting Capacity, 40' of reach, 125 HP Engine, Side Tilt, 56' Lifting Height, 2W/4W/Crab Steering and 4 GOOD SOLID TIRES! This 2013 Genie GTH-1056 Starts Up Strong, Runs Out Well, and is Ready to get to Work. This 2013 Genie. Genie introduces the newest addition to its telehandler lineup, the Genie GTH-1056 telehandler. Extensively field tested to validate performance, the GTH-1056 has been purposefully designed to lower total cost of ownership by 10 percent while delivering 20 percent more lift capacity at max height in a machine with a 30-percent stronger design. GTH™-1056 Specifications Model GTH™-1056. Also available as Tier 3 in limited regions. Availablity limited by region and country standards. Weight will vary depending on options and/or country standards. Load ratings vary depending on attachment. Load Chart GTH™-1056. 40 ft 50 ft 30 ft 20 ft 10 ft 0 ft -10 ft -20 ft. Scheduled Maintenance. Maintenance time and costs are reduced with a new consolidated maintenance protocol for all Genie ® S ® Telescopic Booms, Z ® Articulated Booms, GS ™ Scissor Lifts and GTH ™ Telehandlers in North America. Following updated procedures and simplified intervals, the new Genie maintenance instructions provide rental store owners the flexibility needed to keep their.

Max Lift Capacity10,000 lb
Max Lift Height56 ft 10 in
Max Forward Reach42 ft
Capacity at Max Height4,000 lb
Capacity at Max Reach3,000 lbs

• Front and top glass
• Fully enclosed cab: full glass, heater, defroster, wipers, washer and split door
• Fully enclosed cab with air conditioner: full glass, heater, defroster, wipers, washer and split door

Tire Options

• Foam-filled rough terrain tires
• Solid rough terrain tires

Carriage/Attachment Options

• 48 in. manual Quick-Attach™ carriage
• 60 in. QA carriage
• 72 in. QA carriage
• 48 in. QA side tilt (rotating) carriage
• 60 in. QA side tilt (rotating) carriage
• 72 in. QA swing carriage (45 deg L/R)
• 14 ft.QA Variable reach truss boom

Fork Options

• 48 in. pallet forks (2 x 4 x 48 in.)
• Set of two 60 in. pallet forks, 2 x 4 x 60 in.
• Set of two 72 in. pallet forks, 2 x 4 x 72 in.
• Set of two 60 in. lumber forks, 1.75 x 7 x 60 in.
• Set of six 48 in. cubing tines, 2 x 2 x 48 in.

Genie Gth 1056 Spec

Accessories

Genie Gth 1056 Manual

• Electric block heater
• Dual joystick control
• Fire extinguisher
• Flashing beacon
• Right side steel mesh screen for open canopy
• Work lights: High output LED cab, boom, rear
• Road and Work lights: Work lights and front turn/headlights, rear stop/turn/tail
• Rear proximity alarm
• Rear proximity alarm ready
